HEPA Filtered Positive Pressure

Product Information

Positive Pressure Airflow Design for Product Protection

Construction

• Manufactured with standard 45mm extrusion and 1/4" clear polycarbonate panels
• Deck work surface and custom shelving using ¾" black TRESPA©
• Designed with flip-up gas spring assisted doors and multiple hinged drop-down operator doors
• The rear is designed with two(2ea)lift-off access panels

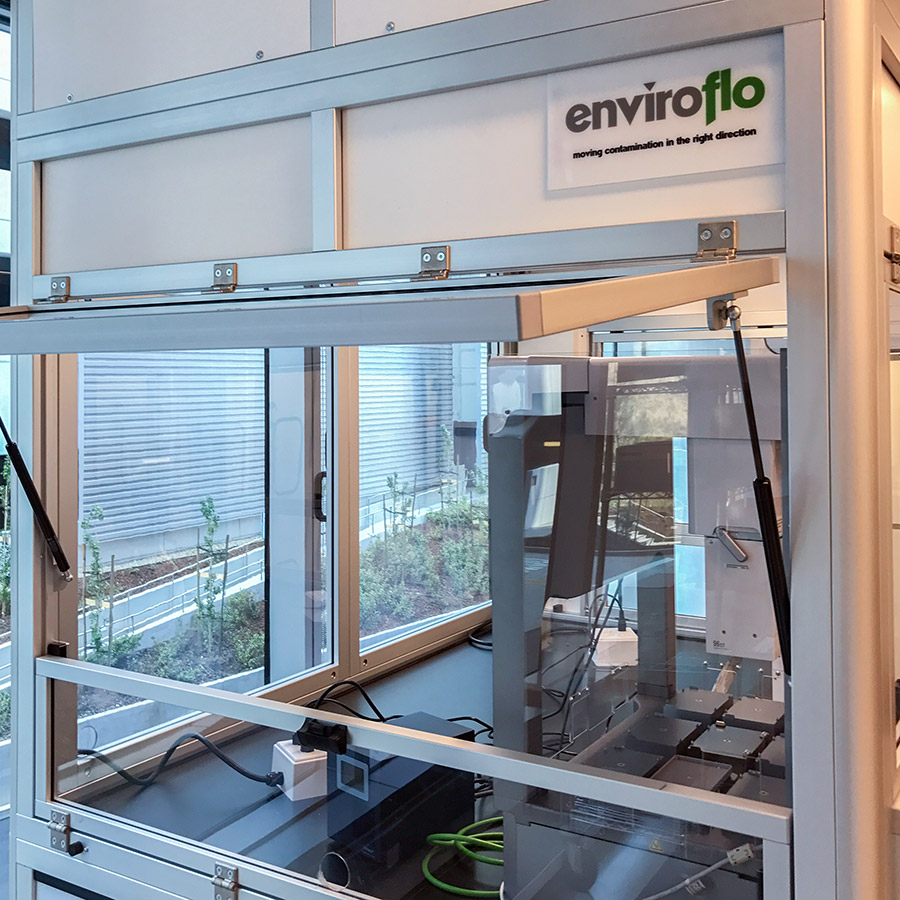

• Included is a flip-up gas-spring assisted door with a drop-down operator door
• Two(2ea)custom designed pull-out pencil/tablet drawers
• Designed to accommodate two(2ea)positive pressure 2' X 4' HEPA Filters,115v,50/60 HZ,variable speed control,@99.99%,0.3microns,30%ASHRAE pre-filter.CFM is nominal 632 on a 2 X 4,12 5/8" high.The running amperage requirement is 1.6A and the start-up requirement is 4.1A
• Two(2ea)Acuity Lithonia LED strip light fixtures
• Two(2ea)base units are assembled together matching the OD of the enclosure
• Includes four(4ea)levelling casters

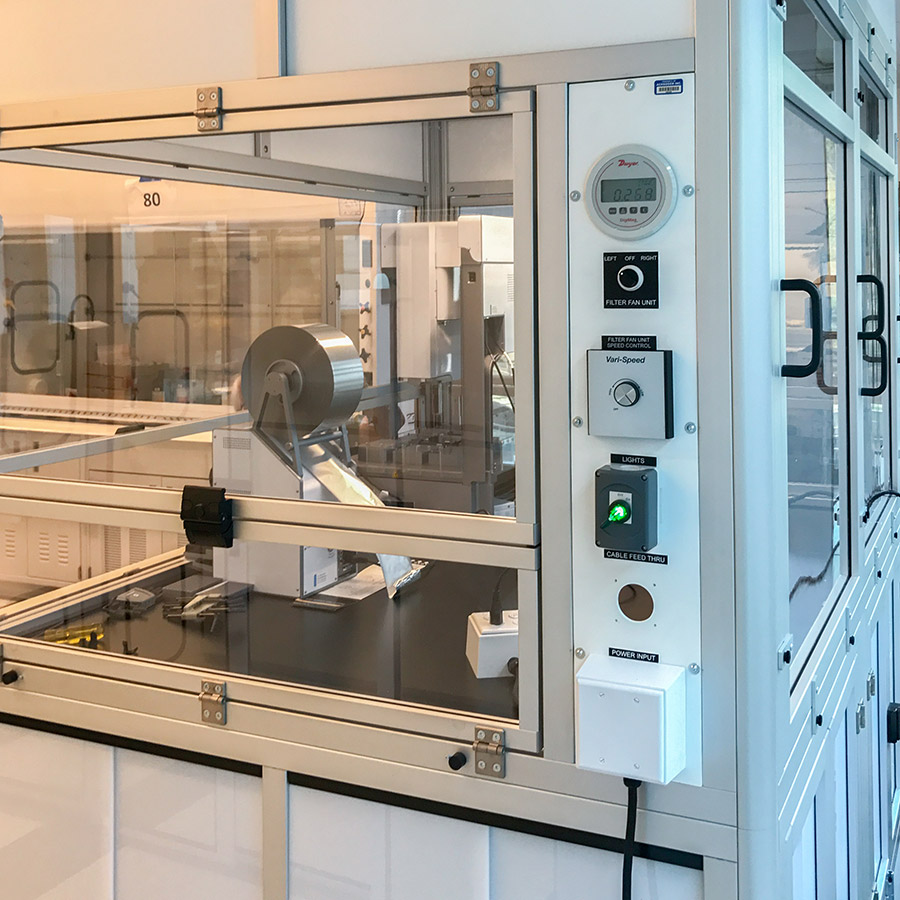

• The control panel includes:
  • Mini-Helic for measuring delta pressure across HEPA filters
  • Variable control for the FFU fan speed
  • On/Off switch for LED lighting
  • Power input module
  • Roxtec EZ4 Entry
